주요 기능 |
|||
빠르고 통합적인 윤활분석 : | |||

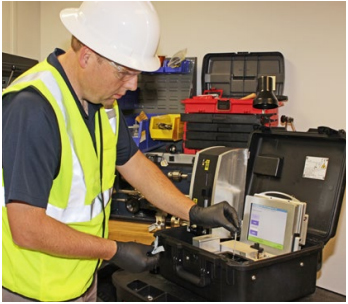

- 현장 사용에 적합한 배터리 구동 방식과 견고한 디자인 |
|
||
- 분석 및 세척 시 솔벤트, 케로신과 같은 희석액이 필요치 않음 |
|||

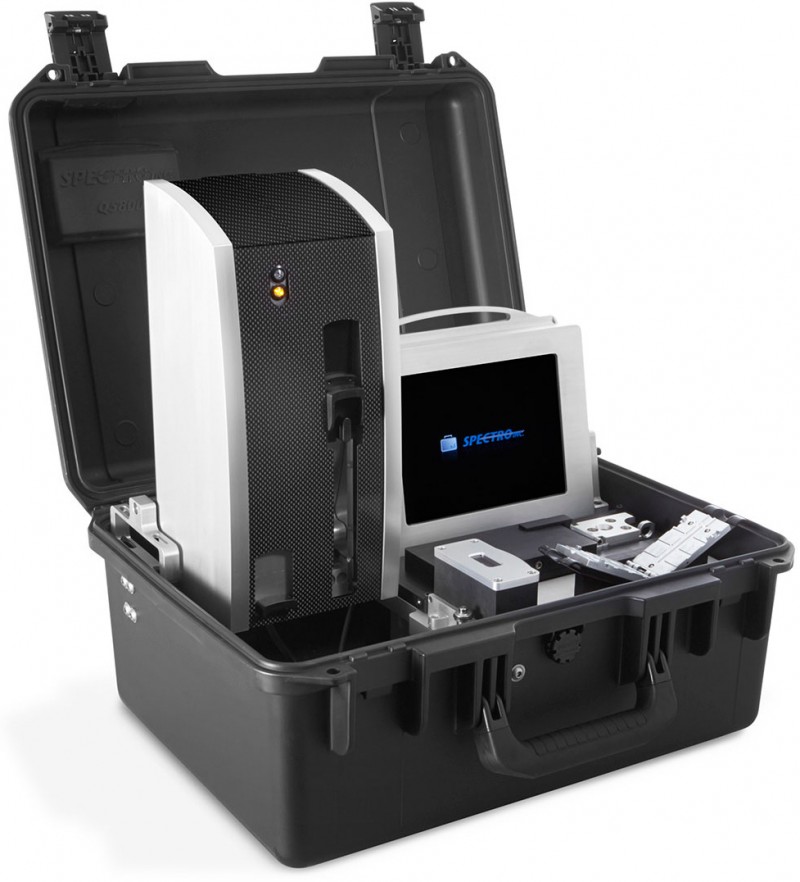

- 하나의 케이스에 4가지 주요 오일 분석 장비 통합 배치 | |||
・ X-Ray Fluorescence (XRF) : 원소분석 |
|||
・ Filtration Particle Quantification (FPQ) : 입자계수 |
|||
・ Infrared (IR) spectrometer : 성상분석 |
|||
・ Kinematic Viscosity : 동점도(40℃ 가열 후 측정 시작) |
|||
- 4개의 테스트를 통해 7분 이내 20개 이상의 오일 분석 파라미터 생성 | |||

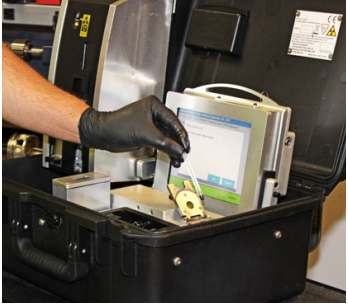

- 터치스크린 방식의 장비 일체형 컨트롤시스템 | |||
- 1개 샘플 당 5ml 이내의 오일 사용 | |||
- ASTM 준수 | |||
![]() ![]() |
주요 사양 |
FieldLab 58 | ||||||||
Applications |
Mineral and synthetic lubricants including gear, engines, transmissions, hydaulics, tubine as well as military, marine and mining applications in-service grease for industrial plants |
|||||||
Sample Volume Required(all) |
3ml | |||||||
Sample Time Required |
Viscosity : 20 secs to 10 mins, dependent on grade Fluid Chemistry : less than 60 secs Particle Count : 20 secs to 3 minutes sample dependent XRF : 3-4 minutes |
|||||||
Ambient Operating Temperature | 0℃ to 40℃ | |||||||
Operational Humidity | RH<80% non-condensing | |||||||
Ambient Altitude |
Up to 5,000 meters(16,404 feet) |
|||||||

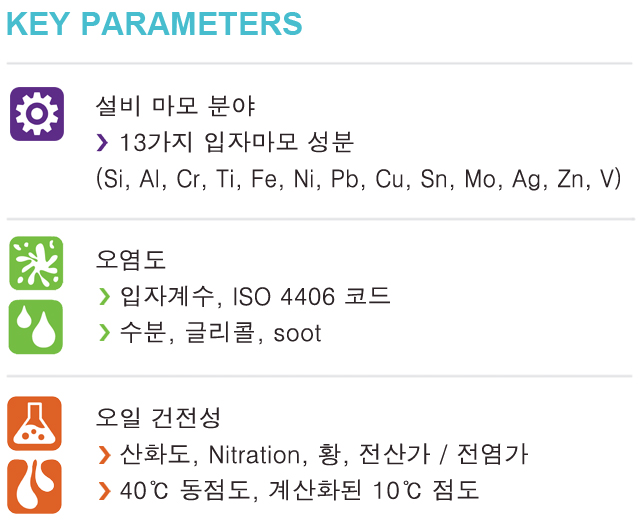

Outputs |
Elemental Concentration (ppm) |
Silicon (Si); Aluminum (Al); Chromium (Cr); Titanium (Ti); Iron (Fe); Nickel (Ni); Lead (Pb); Copper (Cu); Tin (Sn); Molybdenum (Mo); Silver (Ag); Zinc (Zn); Vanadium (V) | ||||||
Fluid Chemistry |
TAN & TBN (mg KOH/g); Oxidation,m Nitration, Sulfation (Abs/.1mm); Water (parts per million); Glycol (% by weight); Soot (% by weight); Incorrect fluid (% by weight); Antioxidant Depletion (% remaining); Antiwear Depletion (% by weight) |
|||||||
Viscosity |
Kinematic viscosity @ 40℃ Calculated viscosity @ 100℃ |
|||||||
Particle Count |
Particle count #/ml (> 4µM) ISO Codes 4/6/14 ISO Codes >6 and >14 are extrapolated |
|||||||
Methodology |
ASTM D7889 (IR), ASTM D8092 (viscosity), ASTM D8127 (FPQ-XRF) |
|||||||
Calibration | Factory, verification standards : NIST traceable verification standards provided |
